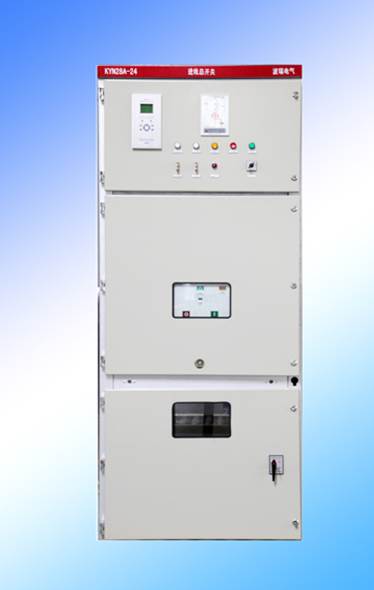

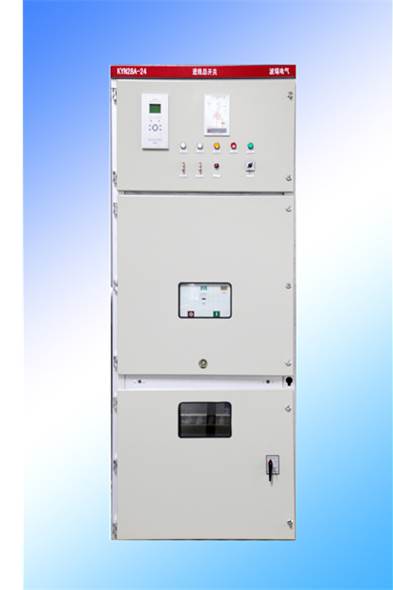

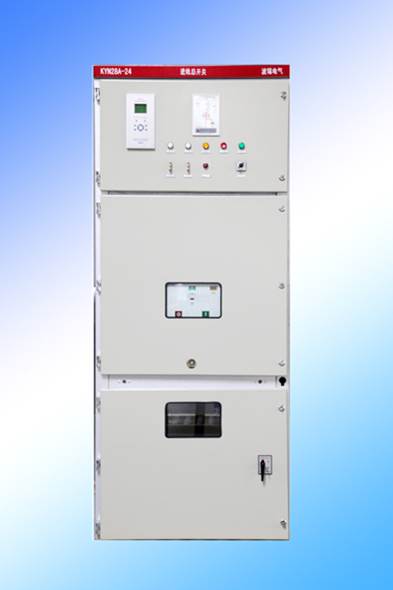

KYN28A-24 Armored Removable AC Metal Enclosed Switchgear

Scope of Applications and Main Uses

KYN28A-24 Armored Removable AC Metal Enclosed Switchgear is an indoor power supply system with 3-Phase 50Hz, rated voltage 24kV ideal for power plants, substations, industrial enterprises and high-rise buildings for the use of acceptance and distribution of electric energy, and the circuit control, protection and monitoring.

KYN28A-24 switchgear is equipped with BRV-24 centrally installed high voltage AC vacuum circuit breaker.

Structure description

KYN28A-24 switchgear consists of the cabinet and the removable component (commonly known as Handcart). The cabinet is divided by metal partitions into multiple functional compartments, such as the bus room, circuit breaker room, cable room, the relay meter room, etc.

The removable component of the switchgear can be configured with vacuum circuit breaker handcart, voltage transformer handcart, surge arrester handcart, isolation handcart, used transformer handcart and fuse handcart.
