PGL Distribution Cabinets

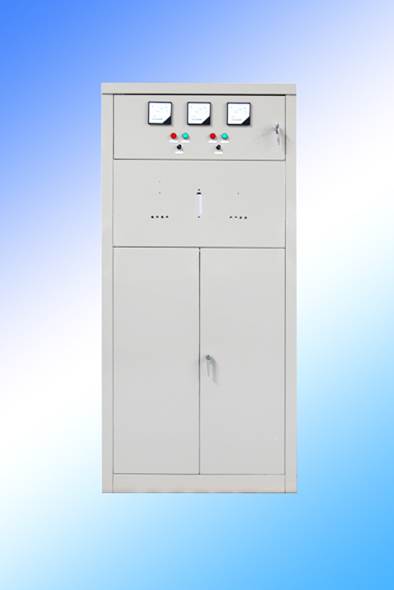

PGL Distribution Cabinets are installed indoors, with open-type double-sided maintenance of low-voltage distribution equipment. The basic structure of the cabinet is assembled with thin steel plate and angle iron welded. The cabinet has a door in front, a dashboard above the face with a small door for installing indicating instrument. As the cabinets placed side by side, partition plates are added between them to reduce the possibility of accidental expanding due to a single cabinet failure.

The main bus bar is installed in the insulation frame above the framework behind the cabinet, with bus shield to prevent the accident of main bus short due to the falling metallic objects above. The neutral bus is installed in the insulator below the cabinet and the main connection point for protecting the grounding system is welded below the framework.

The shells of the instruments are also interconnected with the grounding point. Multiple cabinets are place in block form, and the beginning cabinet and the terminal cabinet can be equipped with fenders on their right and left sides.
